Oxygen Care
SJ-OX1C Portable Oxygen Concentrator
A portable concentrator with a digital control panel and removable rechargeable battery.
USD · Taxes calculated at checkout. Shipping details
SJ-OX1C · Portable format
Get to know
your concentrator.
A digital control panel and removable battery bring the key controls and power options together in one portable unit.
Choose the plug and battery package above. Check the supplied unit, adapter and instructions before connecting power.
Digital controls
Power, timer, flow, volume and lock controls.
Removable battery
Choose one battery or a package with an additional battery.
Power options
Battery, matching AC adapter or compatible car power supply, as described in the manual.
Before use: Read the complete manual and follow professional guidance. Oxygen concentration decreases as flow increases. This device is not intended for life support. Keep smoking, flames, sparks, oils and grease away; keep air openings clear and equipment dry. When help is needed, a caregiver should assist with operation and observe alerts.
Getting started
Four equipment and care checkpoints.
Identify the equipment and connections before you begin. These checkpoints do not replace the complete manual or professional advice about settings and duration.
Use the instructions for your supplied versionManual diagrams identify the connections; product photos show the customer's unit. Display values are illustrative, not recommended settings.
-

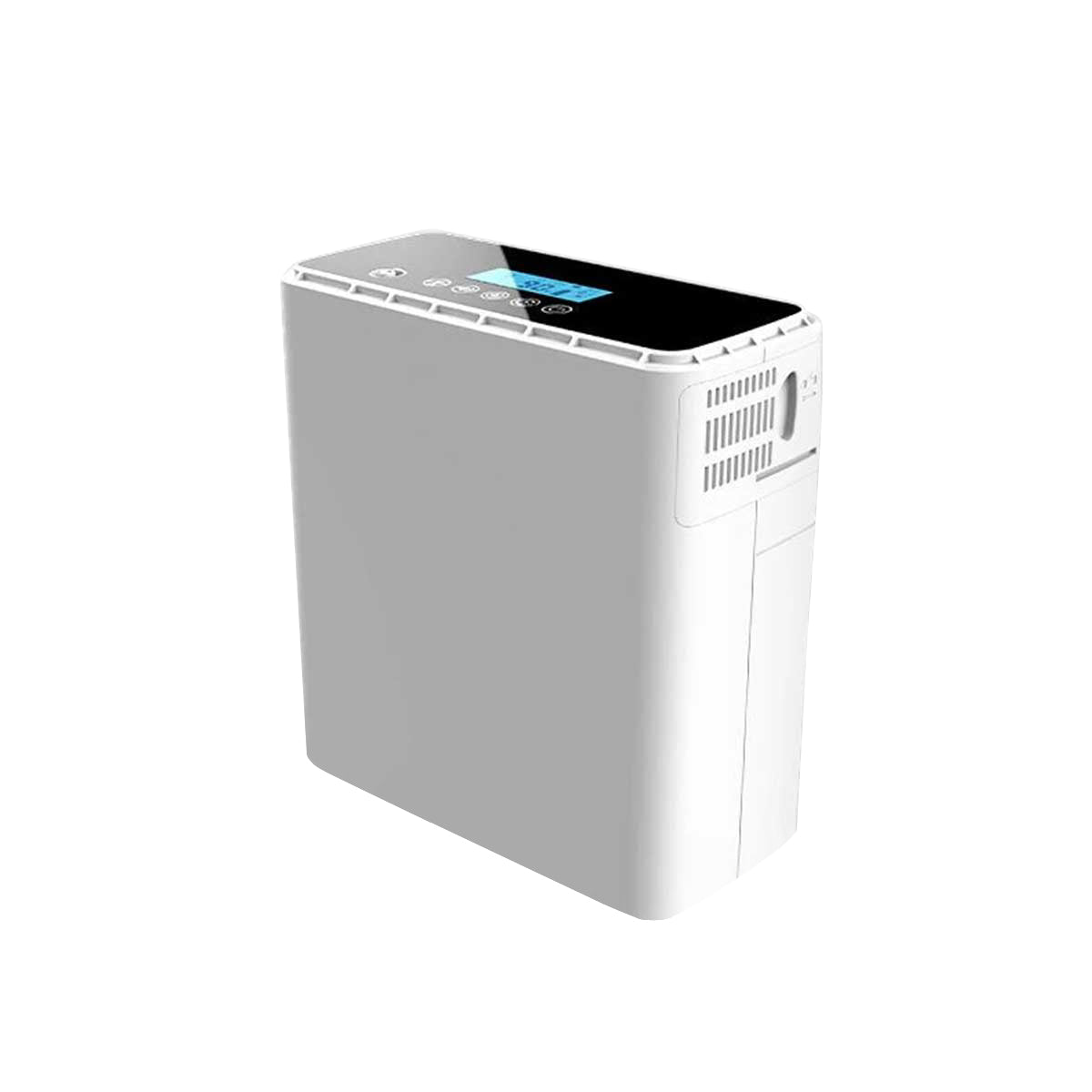

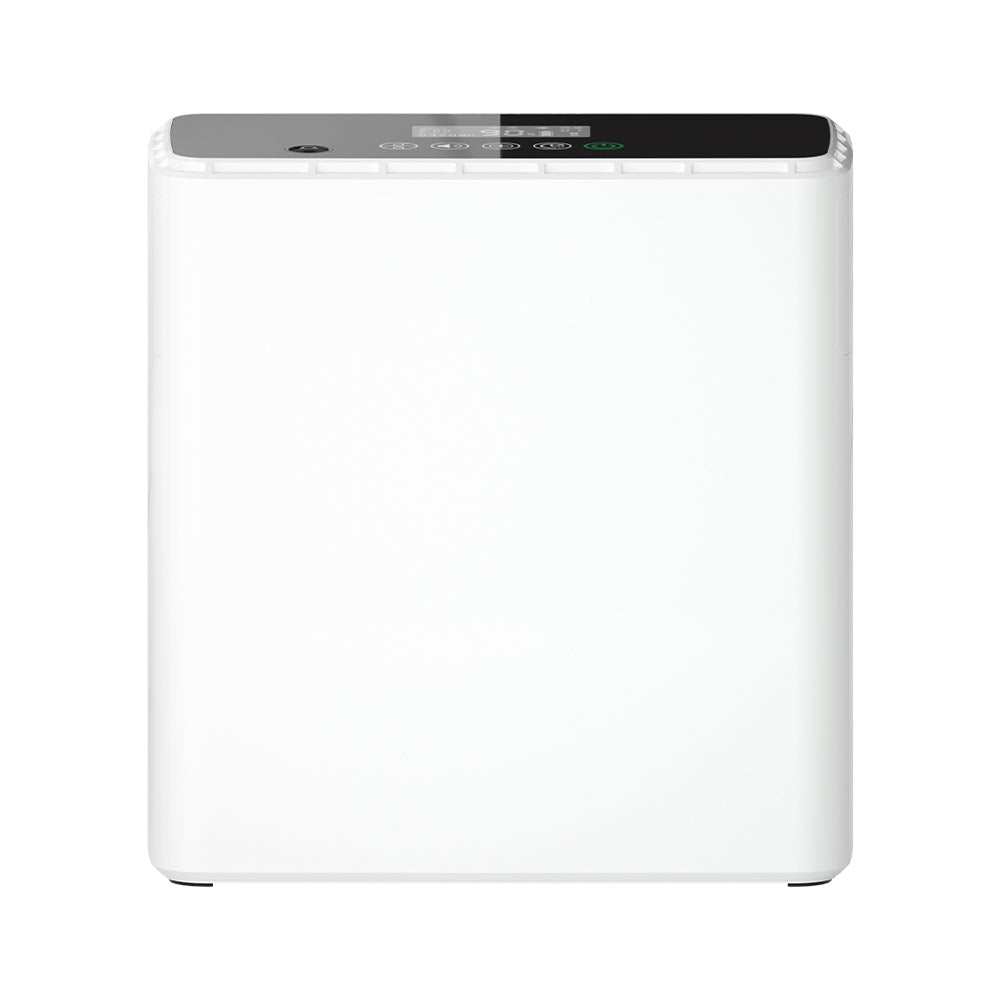

SJ-OX1C product photograph. 01 · Position
Make room for airflow.
Inspect the unit and accessories for damage. Place it securely in a dry, ventilated area with the air openings unobstructed.
Keep away from smoking, flames and heat. Do not operate inside an enclosed bag or carton.
-

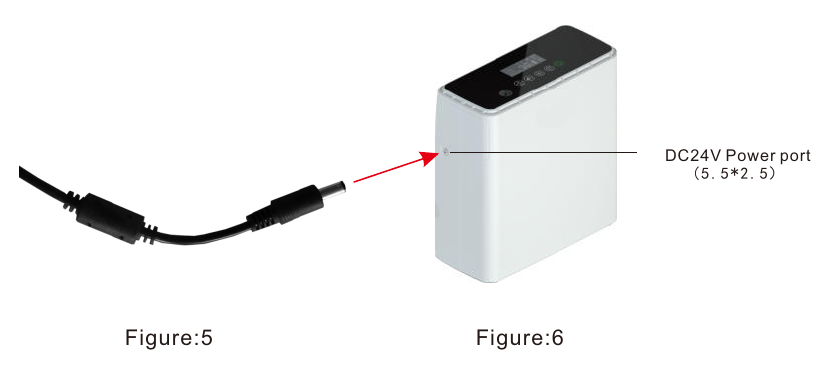

Model-manual power connection diagram.
View full-size diagram ↗02 · Power
Check the matching supply.
Check the unit and adapter rating labels. Use the matching power accessory; the manual describes connecting it to the machine before connecting the power source.
This is not a standard USB charging port. Follow the separate battery charging instructions and check the available charge before use.
-

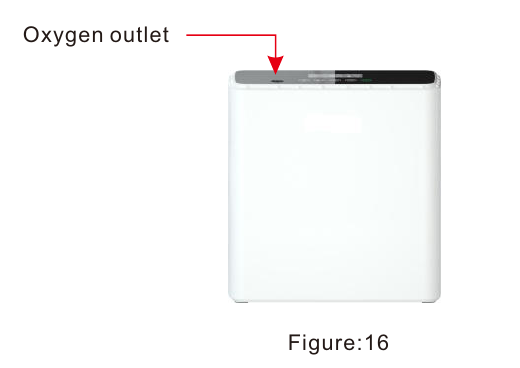

Model-manual oxygen outlet diagram.
View full-size diagram ↗03 · Connect
Identify the oxygen outlet.
Connect the compatible nasal tubing securely to the oxygen outlet. Keep the tubing clear of kinks and follow the instructions for the supplied accessory.
Do not choose flow or duration from a product photograph. Follow your healthcare professional's guidance and the full startup instructions.
-

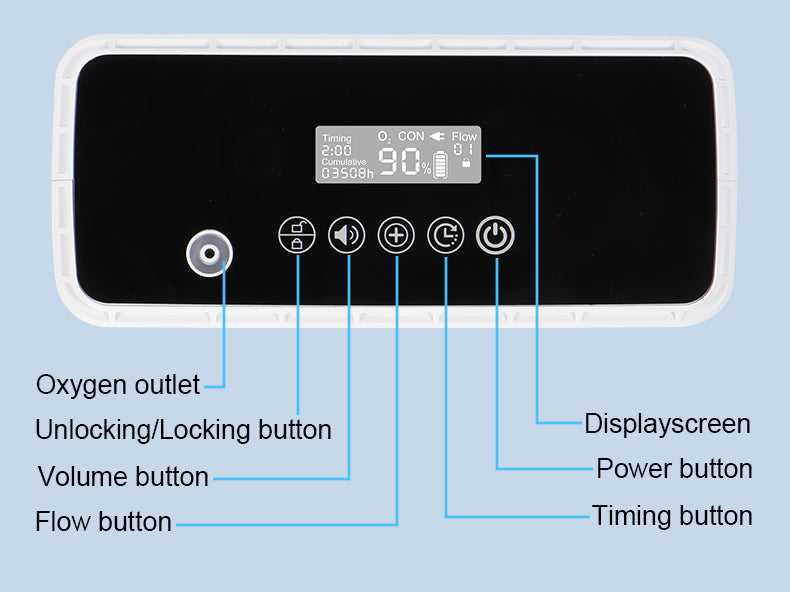

Customer control-panel reference; display values are illustrative.
View full-size reference ↗04 · Finish
Switch off before care.
Follow the operating instructions to finish use and switch off with the power control. Disconnect the power supply before cleaning or maintenance.
Keep liquid out of the housing and connections. Do not open the unit or attempt internal repairs.
Scroll or swipe to explore all four checkpoints. Keep the full manual nearby.
Model details
Understand the model and package.
Package reference
Choose one battery in total or a package with one additional battery in the purchase section.

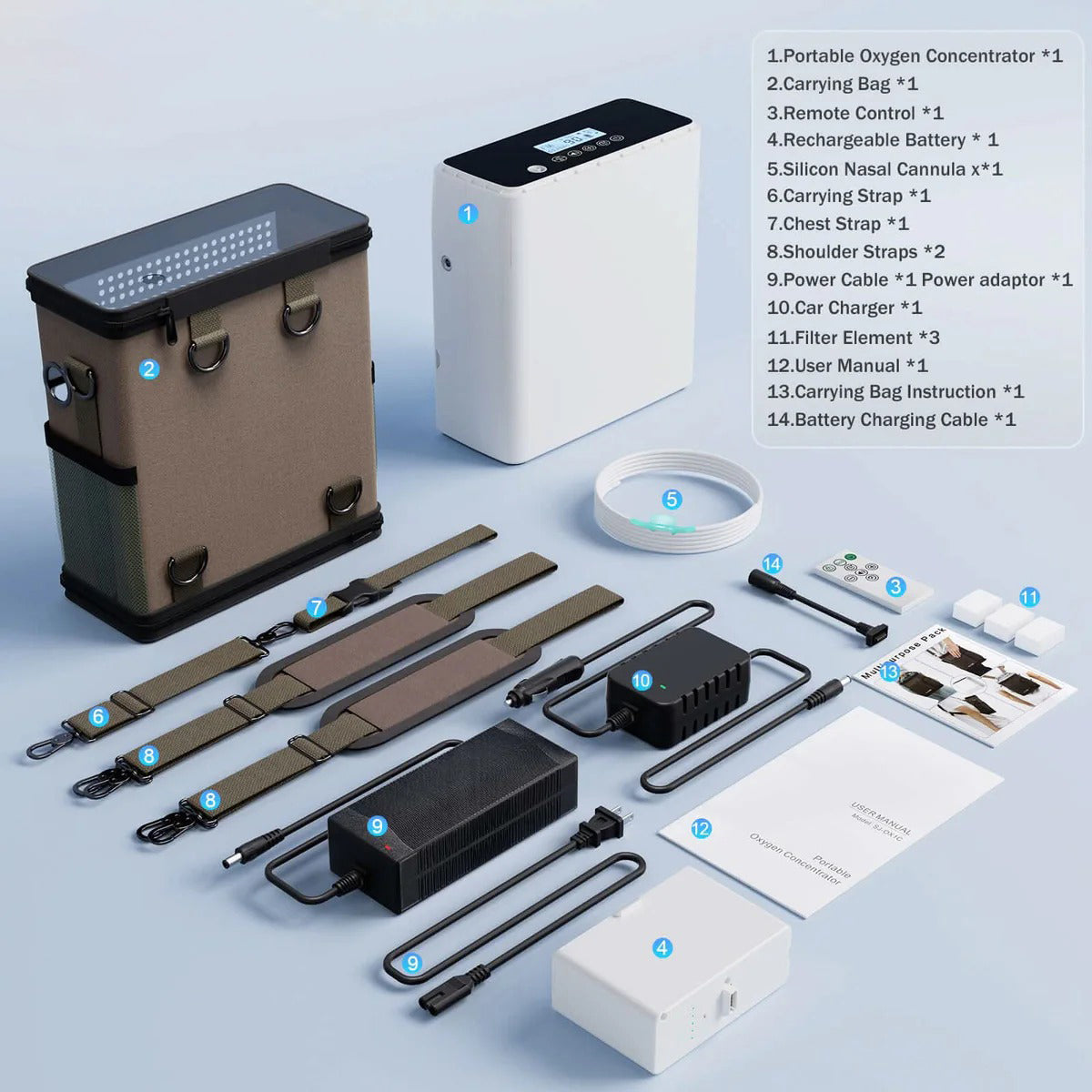

Confirm the supplied carrying accessories, power adapters, nasal tubing, filters and remote with your selected package. Car-power accessories and tubing quantities can differ between versions.
Check package detailsBattery and charging notes
The manual describes a removable rechargeable battery. Confirm its capacity and connector version with your order; do not assume every replacement battery is compatible.
The internal battery does not charge while the unit is running on AC or DC power. The timer is not a runtime indicator, and an additional battery does not imply uninterrupted changeover.
SJ-OX1C manual reference
| Flow mode | Continuous flow |
|---|---|
| Nominal flow range | 1-6 L/min; concentration decreases as flow increases |
| Concentration at lower flow | 93% ±3% at 1 ±0.2 L/min |
| Concentration at higher flow | 30% ±5% at 6 ±0.5 L/min |
| Power options | Removable battery, matching AC adapter or compatible car power accessory |
| Timer control | 15-minute increments, up to 180 minutes; not battery runtime |
| Controls | Power, timer, flow, volume and lock |
| Battery version and runtime | Confirm the supplied battery and operating conditions with our team |
| Dimensions and net weight | Confirm the supplied version before ordering |
These are model-manual reference figures, not a recommendation for your settings. Check the rating label and instructions supplied with your unit; operating conditions affect output.
Read complete specifications · PDF
Operating environment and care
The manual lists an operating temperature of 5-40°C, humidity of 35-75% RH and atmospheric pressure of 860-1060 hPa. Read the complete environmental instructions, including precautions after cold storage.
Read environmental conditions · PDF
Keep equipment dry, ventilated and free of damage. Follow the model instructions for filters and tubing, and do not operate with a missing or wet filter.
Instructions and support
Keep the full guidance close.
SJ-OX1C User Manual · English · 25 pages
HGME2209-Rev B. Match the instructions to your supplied unit and accessories. Contact our team if your version differs.
Find your fit
Explore the range.
Los campos técnicos de comparación y las condiciones específicas de cada modelo están disponibles actualmente en inglés. Los controles y la ayuda se muestran en el idioma seleccionado.
Desplázate horizontalmente para comparar todos los modelos
| Encuentra tu modeloModelos: 3 |
XW-06Tensiómetro de muñeca Ver producto |
XB-01Tensiómetro de brazo Ver producto |
DP-02Tensiómetro con cilindro para el brazo Ver producto |
|---|---|---|---|
| Product PositioningDiferente | Compact and portable for convenient measurement anytime | A balanced choice for everyday home monitoring | A simpler, user-friendly solution for routine home measurement |
| Measurement SiteDiferente | Wrist | Upper arm | Upper arm |
| How It WorksDiferente | An inflatable wrist cuff applies pressure to the wrist artery. Oscillometric technology detects pulse oscillations to calculate systolic pressure, diastolic pressure, and pulse rate. | An inflatable cuff wraps around the upper arm. Oscillometric technology detects pressure oscillations to calculate systolic pressure, diastolic pressure, and pulse rate. | Place the upper arm into the integrated arm cylinder. The device automatically inflates and uses oscillometric technology to measure blood pressure and pulse rate. |
| How to Wear / UseDiferente | Wrap the integrated cuff directly around the wrist | Wrap the separate cuff correctly around the upper arm | Place the arm directly into the integrated arm cylinder; no separate cuff wrapping required |
| Ease of UseDiferente | Easy, but wrist positioning is more sensitive during measurement | Straightforward; correct cuff placement is required | Very intuitive, with fewer cuff-wrapping steps |
| Measurement PostureDiferente | Keep the wrist at heart level; remain still and do not talk | Sit steadily with the upper arm relaxed and supported at heart level | Sit steadily, place the arm naturally into the arm cylinder, keep it supported and remain still |
| PortabilityDiferente | ★★★★★ Excellent | ★★★★☆ Very Good | ★★☆☆☆ Best for a fixed home location |
| Storage ConvenienceDiferente | Compact size, convenient for carrying | Main unit + cuff; suitable for home storage or travel | Integrated design with a larger footprint; ideal for long-term tabletop placement |
| Typical Use ScenariosDiferente | Travel, business trips, office use, quick measurements | Everyday home use, regular blood pressure tracking, family health monitoring | Fixed home monitoring, routine use by older adults, frequent use by multiple family members |
| Ideal UsersDiferente | Users who prioritize portability, travel frequently, or want quick and convenient measurements | Most home users and those who prefer a standard upper-arm measurement method | Older adults, users with limited hand dexterity, and those who prefer fewer cuff-placement steps |
| Key AdvantagesDiferente | Compact & portable / One-touch measurement / Large display | Upper-arm measurement / Adjustable cuff / Flexible home use | Integrated arm cylinder / Fewer setup steps / Large easy-to-read display / Tabletop design |
| Things to ConsiderDiferente | Wrist position can significantly affect readings. Follow the instructions carefully and keep the wrist at heart level. | Correct cuff size and placement are important. A cuff that is too loose, too tight, or incorrectly sized may affect measurements. | Requires more space than compact monitors; correct sitting posture and arm position should still be maintained according to the instructions. |
| Best Choice ForDiferente | Best for Portability | Best for Everyday Home Monitoring | Best for Easy Home Use |
| Website Short LabelDiferente | Portable & Compact | Reliable Everyday Monitoring | Easy Arm-In Measurement |
| Recommended by ScenarioDiferente | Travel & portability ★★★★★ Fixed home use ★★★☆☆ |
Travel & portability ★★★★☆ Fixed home use ★★★★★ |
Travel & portability ★★☆☆☆ Fixed home use ★★★★★ |
Crea tu comparación
Añade un modelo arriba o restaura toda la gama para ver las opciones una al lado de la otra.
Sigue las instrucciones de tu modelo. La colocación correcta del manguito y la posición del brazo o la muñeca importan al tomar una lectura.
Compara el formato, las opciones de alimentación y las especificaciones. Lee la concentración de oxígeno junto con su ajuste de flujo.
Desplázate horizontalmente para comparar todos los modelos
| Encuentra tu modeloModelos: 3 |
ZY-01Concentrador de oxígeno doméstico $399.99 Ver producto |
ZY-05Concentrador de oxígeno doméstico $578.00 Ver producto |
SJ-OX1CConcentrador de oxígeno portátil $999.00 Ver producto |
|---|---|---|---|
| Best ForDiferente | Home setup | Higher-flow home setup | Portable & in-car setup |
| Oxygen ConcentrationDiferente | ≥90% at 1 L/minAt the maximum recommended flow. | ≥90% at 1–5 L/minAt zero outlet back pressure, after startup. See conditions below. | 93% ±3% at 1 L/minConcentration decreases as flow increases. |
| Flow RangeDiferente | 1 L/minMaximum recommended flow, not the full adjustment range. | 1–5 L/minMaximum recommended flow: 5 L/min. | 1–6 L/minAdjustable continuous flow. This is not a high-concentration rating at 6 L/min. |
| WeightDiferente | Weight not yet verified for this versionConfirm the supplied version. | Weight not yet verified for this versionConfirm the supplied version. | Weight not yet verified for this versionConfirm the device and battery package. |
| Power / MobilityDiferente | Plug-in Home Use | Plug-in Home Use | AC, compatible car power or batteryConfirm the included adapters and battery package. |
| PortabilityDiferente | Tabletop format | Wheeled base | Shoulder-bag format |
| Typical UseDiferente | Home | Home | Home / Car |
| Why Choose ItDiferente | Compact home setup with a readable display. | Adjustable flow with a wheeled base. | Portable format with several power options. |
Crea tu comparación
Añade un modelo arriba o restaura toda la gama para ver las opciones una al lado de la otra.
Lee la concentración y el flujo juntos. Las cifras proceden de los manuales de cada modelo y dependen de las condiciones de funcionamiento. No son una recomendación para ajustar el oxígeno. Para la idoneidad médica, sigue las indicaciones de tu profesional sanitario. Un guion indica que la versión suministrada necesita confirmación; no equivale a cero y se excluye del resaltado de diferencias.
Condiciones de flujo y orientación por modelo
ZY-01: ≥90% applies at the maximum recommended flow of 1 L/min. Do not assume the same concentration at higher settings. The manual describes approximately 30 minutes of startup to reach maximum concentration.
ZY-05: The manual states ≥90% up to the maximum recommended flow of 5 L/min at zero outlet back pressure, reaching the specified concentration within 30 minutes of initial startup. Its ZY-05 graph covers 1–5 L/min. Altitude and operating conditions affect concentration.
SJ-OX1C: The manual specifies 93% ±3% at 1 ±0.2 L/min and 30% ±5% at 6 ±0.5 L/min. The adjustable flow range is not a guarantee of high concentration at every setting. Battery and car-power accessories depend on the package. Confirm compatibility before ordering; no single battery runtime is promised here.
These startup times describe equipment operation, not a treatment duration. Compare the figures with the manual and label supplied with your unit. Weight is not quoted while supplied-version details remain unconfirmed.
Manual en inglés de ZY-01 (PDF, se abre en una pestaña nueva) · Manual en inglés de ZY-05 (PDF, se abre en una pestaña nueva) · Confirmar el manual y el paquete de SJ-OX1C
¿Dudas sobre el dispositivo o el paquete? Contacta con nuestro soporte de productos.
Compara WH-02, WH-03 y YS-37 con las especificaciones actualizadas de Ziqing.
Desplázate horizontalmente para comparar los modelos seleccionados
| Encuentra tu modeloModelos: 3 |
 WH-02Nebulizador de compresor $69.99 Ver producto |
 WH-03Nebulizador de compresor Consultar sobre el modelo |
 YS-37Nebulizador de mano $29.98 Ver producto |
|---|---|---|---|
| Product PositioningDiferente | Home-use compressor nebulizer with accessory storage | Compact compressor nebulizer with timer/voice features | Lightweight handheld option designed for portability |
| Working PrincipleDiferente | Compressor-driven aerosolization | Compressor-driven aerosolization | Piezoelectric mesh vibration atomization |
| Nebulization RateDiferente | 0.32mL/min | 0.22mL/min | ≥ 0.20 mL/min |
| Particle SizeDiferente | MMAD 2.6 μm ±25% | Median diameter 3.7 μm ±25%; particles <5 μm ≥60% | Fog particle median diameter 5 μm ±25% |
| NoiseDiferente | ≤55 dB | ≤50 dB(A) | ≤38 dB(A) |
| Airflow OutputDiferente | 6 L/min | ≥4.5 L/min | Not applicable (mesh technology) |
| WeightDiferente | ≤1.5 kg | ≤0.3 kg | Not clearly specified in the supplied manual |
| DimensionsDiferente | Approx. 168 × 108 × 180 mm | 143 × 128 × 77.6 mm | 45 × 45 × 115 mm |
| Power / MobilityDiferente | AC powered (manual lists AC220V / AC110V versions) | AC100–240V, 50/60Hz | 2×AA batteries / optional 3.7V lithium battery / Type-C mobile charger |
| Continuous Working TimeDiferente | Not clearly specified | ≥60 minutes under suitable conditions | Approx. 20-minute cycle before automatic stop |
| Medication Capacity / ResidueDiferente | Liquid residue ≤1.2 mL | Liquid residue ≤1.2 mL | Recommended fill 0.5–8 mL |
| Ease of UseDiferente | Simple power-switch operation; built-in storage chamber | Simple operation with timing function and voice output | Handheld one-button operation; mask or mouthpiece use |
| PortabilityDiferente | ★★☆☆☆ | ★★★★☆ | ★★★★★ |
| PracticabilityDiferente | ★★★★★ | ★★★★☆ | ★★★★☆ |
| Typical Use ScenariosDiferente | Home / clinic / fixed-location use | Home / travel-friendly tabletop use | Travel / office / home / on-the-go use |
| Ideal UsersDiferente | Users who prefer a traditional compressor nebulizer for regular use | Users who want a lighter compressor model with timer features | Users who prioritize compact size, low noise and portability |
| Key AdvantagesDiferente | Stable compressor system / Accessory storage / Simple operation | Lightweight / Timer function / Voice output / Wide-range power supply | Compact / Quiet / Battery or Type-C power / No air tube required |
| Things to ConsiderDiferente | Replace the atomizing components | Replace the atomizing components | Mesh plate requires careful cleaning and maintenance |
| Best Choice ForDiferente | Best for Regular Home Use | Best for Compact Compressor Use | Best for Portability & Quiet Use |
| Website Short LabelDiferente | Reliable Home Nebulization | Compact & Feature-Rich | Portable & Quiet |
Crea tu comparación
Añade hasta tres modelos arriba o restaura la selección predeterminada.
Cómo leer esta comparación. Un guion indica que una especificación aún no se ha verificado para ese modelo, no que la función esté ausente. Los valores faltantes se excluyen del resaltado de diferencias. También se excluyen los datos incompletos de alimentación de WH-05 y YS-35. Consulta los detalles específicos del modelo con nuestro equipo antes de elegir. Contacta con nuestro soporte de productos
Condiciones de prueba de WH-02 y orientación por modelo
Source: Ziqing's updated product comparison. WH-02 nebulization rate (0.32 mL/min) and noise (≤55 dB) are customer-confirmed actual measurements. The original WH-02 manual lists approximately 0.16 mL/min and ≤65 dB; it has not been modified. Test conditions for the updated measurements were not provided, so the manual's test conditions are not attributed to these values.
Specifications and portability/practicability ratings are supplied by Ziqing, not an independent performance ranking. Confirm the exact version, power supply and accessories for your device. Unspecified values are not counted as verified differences.
Helpful answers
Questions, answered.
Is oxygen concentration the same at every flow setting?
No. The SJ-OX1C manual lists 93% ±3% at 1 ±0.2 L/min and 30% ±5% at 6 ±0.5 L/min. Concentration decreases as flow increases. These are manual-listed endpoints, not advice about your settings. Follow your healthcare professional's guidance and read the complete specifications.
How do the two battery packages differ?
The first option includes one battery in total. The second includes that battery plus one additional battery. Confirm the supplied battery capacity, connector version and other accessories with our team. An additional battery is not a guarantee of a particular total runtime or uninterrupted operation.
Can the internal battery charge while the machine is operating?
The supplied model manual states that the internal battery does not charge while the concentrator is running on AC or DC power. Follow the charging instructions for the matching adapter and battery; do not assume simultaneous charging or uninterrupted battery changes. See battery precautions and charging instructions.
Does the 180-minute timer describe battery runtime?
No. The manual describes a timer with 15-minute increments up to 180 minutes. This is a control setting, not battery runtime or a recommended treatment duration. Battery version, condition and operating settings need to be considered separately.
How should I clean the outer housing?
Switch off and disconnect the power supply first. Follow the manual's external cleaning instructions, keeping liquid out of the unit and its connections. Do not immerse the housing, use alcohol or oil-based cleaners, or open it for internal repairs. Read the full cleaning and maintenance instructions.
What if a warning appears or oxygen delivery stops?
Follow the instructions supplied with your unit. For unresolved faults, stop using the faulty device, follow the backup arrangements agreed with your healthcare professional and contact your equipment provider. Seek immediate medical help if you feel unwell or have an emergency. This website form is not an emergency service.
Which option should I select?
Match the available option to the version you need. For mains-powered devices, check the plug and voltage on the product label before use. Ask our team if you are unsure about compatibility.
Where can I find shipping and return information?
Read our shipping policy and refund policy for the store's current terms.
