Oxygen Care
ZY-05 Home Oxygen Concentrator
A mains-powered home concentrator with a wheeled base, a digital display and an adjustable flowmeter.
USD · Taxes calculated at checkout. Shipping details
ZY-05 · Home oxygen care
Clear controls.
A wheeled home setup.
A digital display, a marked flowmeter and separately labelled outlets help you identify the controls before use. The wheeled base is designed for moving the unit within your home.
Use only the settings and accessories appropriate for your supplied unit. Product display values are illustrative, not recommended settings.
Adjustable flowmeter
A clearly marked scale and physical adjustment knob.
Digital controls
Display and timer controls described in the model manual.
Separate outlets
Oxygen and nebulizer connections have distinct labels.
Before use: Read the complete manual and follow professional guidance. This device is not intended for life support or patient monitoring. Keep smoking, flames, sparks, oils and grease away from the equipment and its connections.
Getting started
Know your setup before you begin.
Four preparation and care checkpoints. They do not replace the complete instructions or professional advice about flow and duration.
Check the supplied model and instructionsThe shared manual uses schematic drawings. Housing details and fitting positions may differ from the product photos; follow the labels and instructions supplied with your unit.
-

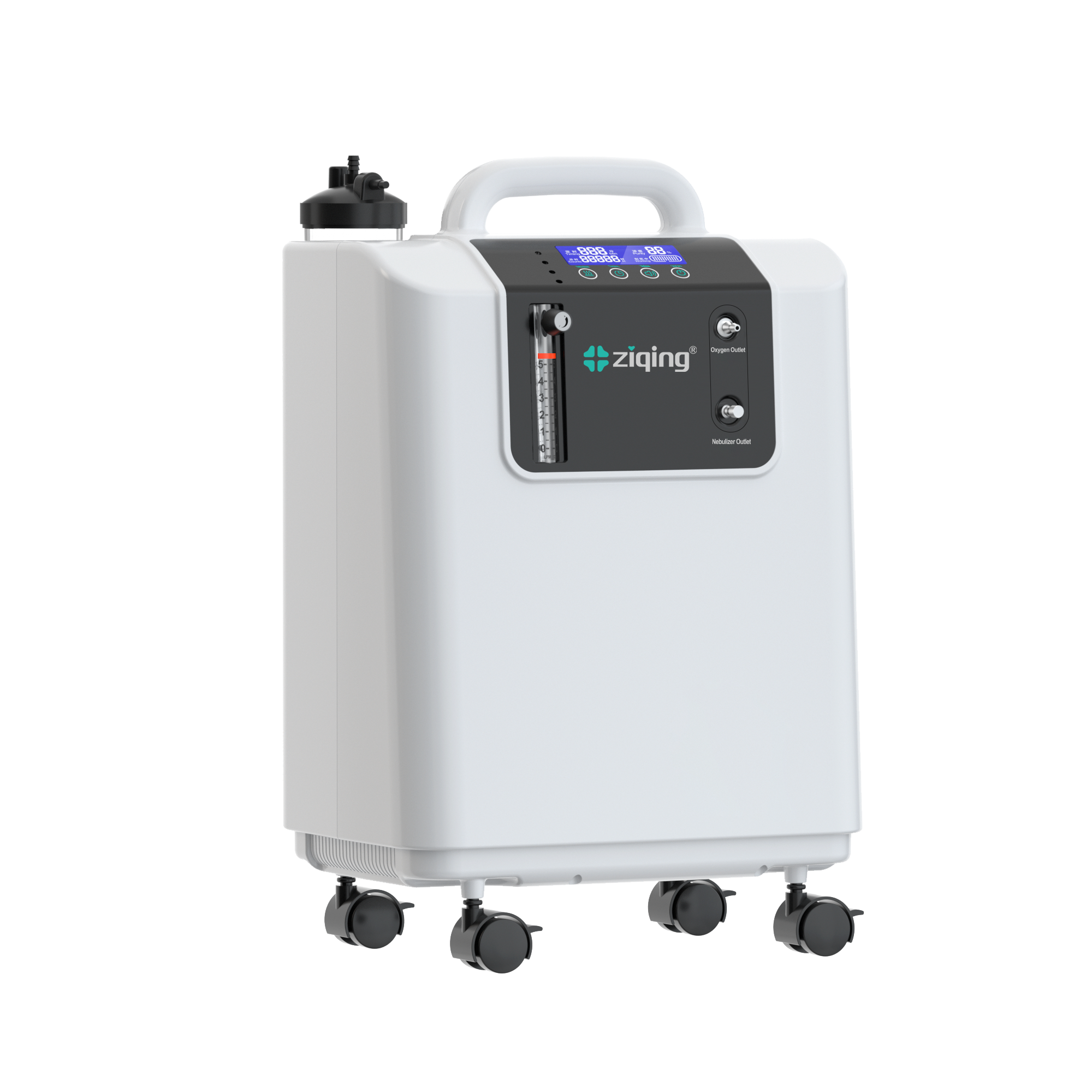

ZY-05 product photograph. 01 · Position
Check and position.
Check the model and power label, and inspect for transport damage. Place the unit upright on a firm, stable surface with at least 10 cm clearance on all sides.
Keep air openings clear. Do not place the unit on a bed, sofa or other soft surface.
-

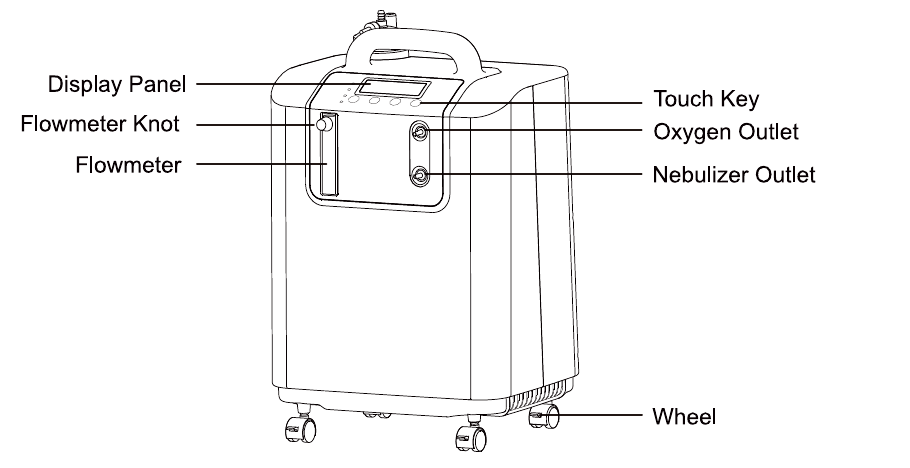

Shared-manual schematic, not a supplied-accessory photograph.
View full-size diagram ↗02 · Prepare
Prepare the humidifier.
Follow the instructions for your supplied humidifier. Use pure or distilled water between the MIN and MAX marks, without exceeding MAX, then refit it securely.
Do not select accessories by appearance alone. Confirm compatibility with the Ziqing team when needed.
-

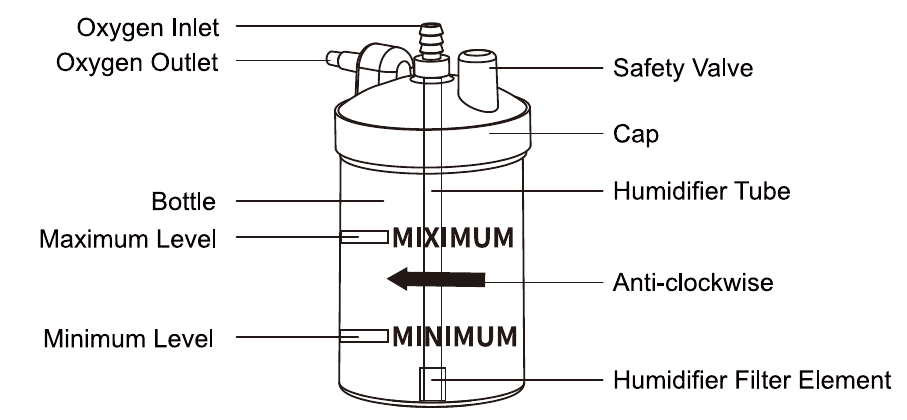

Shared-manual schematic. Follow the labels on your actual unit.
View full-size diagram ↗03 · Follow guidance
Check connections and settings.
Use the correctly labelled outlet and approved accessories. Follow the full startup instructions and only the flow setting advised by your healthcare professional.
The manual describes approximately 30 minutes of initial startup to reach maximum concentration. This is not a treatment-duration recommendation.
-

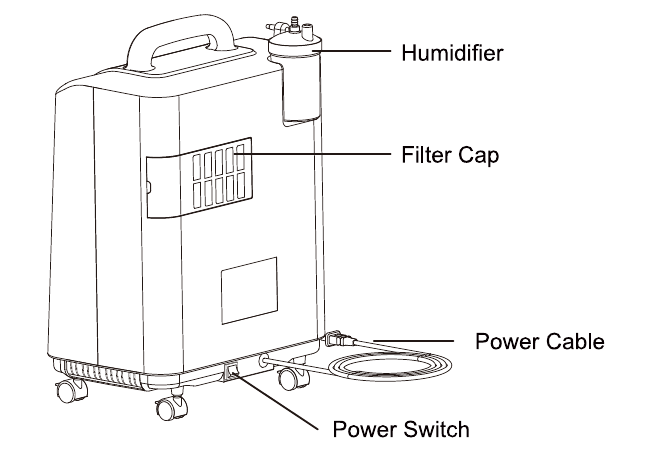

Shared-manual schematic; enclosure layout may differ.
View full-size diagram ↗04 · Finish
Switch off before care.
Follow the complete instructions to finish use. Switch off and disconnect the power supply before cleaning or maintenance.
Do not open the cabinet or attempt internal repairs. Contact product support if there is a fault or damage.
Scroll or swipe to explore all four checkpoints. Keep the full manual nearby.
Model details
Specifications & package details.
Listed in the model manual
- Oxygen concentrator× 1
- User manual× 1
- Filter cotton× 1
- Mask oxygen inhaler× 1
- Nasal oxygen inhaler× 1
- Remote controlOptional
- Certificate document× 1
Confirm the supplied configuration with your order. The listed certificate is a package document, not a claim of regulatory approval.
Check package detailsCleaning and filter care
Disconnect power first. Clean the cabinet with a mild cleaner and a non-abrasive cloth, keeping liquids out of the seams. Do not immerse or open the housing.
Follow the instructions for each exact filter and accessory. Do not assume every filter is washable, and never use the concentrator with a wet or missing filter.
Need help with your device?
Contact our team with the model, supplied version and any visible error message. Do not attempt an internal repair. For unresolved problems, follow the manual's stop-use and backup-supply instructions.
ZY-05 specifications
| Flow range | 1-5 L/min |
|---|---|
| Maximum recommended flow | 5 L/min |
| Oxygen concentration | ≥90% at 1-5 L/min, under the manual's specified conditions |
| Output pressure | 40-70 kPa, as listed for ZY-05 |
| Dimensions | 380 × 302 × 565 mm (L × W × H) |
| Operating temperature | 10-40°C |
| Operating humidity | 30-75% RH |
| Atmospheric pressure | 86-106 kPa |
| Power supply | AC mains; check the voltage and frequency on your unit's rating label |
| Net weight | Confirm the supplied version with our team |
Read concentration with its conditions. The manual specifies zero outlet back pressure and reaching the stated concentration within 30 minutes of initial startup. Output depends on operating conditions; concentration decreases at higher altitude. These figures are not a recommendation for your settings.
Timer, sound level and electrical details
The manual describes a 0-360 minute timer with 15-minute adjustments and a continuous setting. These are equipment controls, not advice about treatment duration or unattended use.
Manual-listed sound level: ≤60 dB(A). No test distance is supplied here, so this is not a promise of silent operation.
US, UK and EU are plug options, not proof of universal voltage compatibility. Check the unit's voltage and frequency before connecting power; do not use extension cords. Contact the team to confirm your configuration.
Instructions and support
The right guidance, close at hand.
ZY-03 / ZY-05 User Manual · English · 34 pages
This is a shared model manual. Read the ZY-05-specific parameters and the instructions matching your supplied unit.
Find your fit
Explore the range.
Los campos técnicos de comparación y las condiciones específicas de cada modelo están disponibles actualmente en inglés. Los controles y la ayuda se muestran en el idioma seleccionado.
Desplázate horizontalmente para comparar todos los modelos
| Encuentra tu modeloModelos: 3 |
XW-06Tensiómetro de muñeca Ver producto |
XB-01Tensiómetro de brazo Ver producto |
DP-02Tensiómetro con cilindro para el brazo Ver producto |
|---|---|---|---|
| Product PositioningDiferente | Compact and portable for convenient measurement anytime | A balanced choice for everyday home monitoring | A simpler, user-friendly solution for routine home measurement |
| Measurement SiteDiferente | Wrist | Upper arm | Upper arm |
| How It WorksDiferente | An inflatable wrist cuff applies pressure to the wrist artery. Oscillometric technology detects pulse oscillations to calculate systolic pressure, diastolic pressure, and pulse rate. | An inflatable cuff wraps around the upper arm. Oscillometric technology detects pressure oscillations to calculate systolic pressure, diastolic pressure, and pulse rate. | Place the upper arm into the integrated arm cylinder. The device automatically inflates and uses oscillometric technology to measure blood pressure and pulse rate. |
| How to Wear / UseDiferente | Wrap the integrated cuff directly around the wrist | Wrap the separate cuff correctly around the upper arm | Place the arm directly into the integrated arm cylinder; no separate cuff wrapping required |
| Ease of UseDiferente | Easy, but wrist positioning is more sensitive during measurement | Straightforward; correct cuff placement is required | Very intuitive, with fewer cuff-wrapping steps |
| Measurement PostureDiferente | Keep the wrist at heart level; remain still and do not talk | Sit steadily with the upper arm relaxed and supported at heart level | Sit steadily, place the arm naturally into the arm cylinder, keep it supported and remain still |
| PortabilityDiferente | ★★★★★ Excellent | ★★★★☆ Very Good | ★★☆☆☆ Best for a fixed home location |
| Storage ConvenienceDiferente | Compact size, convenient for carrying | Main unit + cuff; suitable for home storage or travel | Integrated design with a larger footprint; ideal for long-term tabletop placement |
| Typical Use ScenariosDiferente | Travel, business trips, office use, quick measurements | Everyday home use, regular blood pressure tracking, family health monitoring | Fixed home monitoring, routine use by older adults, frequent use by multiple family members |
| Ideal UsersDiferente | Users who prioritize portability, travel frequently, or want quick and convenient measurements | Most home users and those who prefer a standard upper-arm measurement method | Older adults, users with limited hand dexterity, and those who prefer fewer cuff-placement steps |
| Key AdvantagesDiferente | Compact & portable / One-touch measurement / Large display | Upper-arm measurement / Adjustable cuff / Flexible home use | Integrated arm cylinder / Fewer setup steps / Large easy-to-read display / Tabletop design |
| Things to ConsiderDiferente | Wrist position can significantly affect readings. Follow the instructions carefully and keep the wrist at heart level. | Correct cuff size and placement are important. A cuff that is too loose, too tight, or incorrectly sized may affect measurements. | Requires more space than compact monitors; correct sitting posture and arm position should still be maintained according to the instructions. |
| Best Choice ForDiferente | Best for Portability | Best for Everyday Home Monitoring | Best for Easy Home Use |
| Website Short LabelDiferente | Portable & Compact | Reliable Everyday Monitoring | Easy Arm-In Measurement |
| Recommended by ScenarioDiferente | Travel & portability ★★★★★ Fixed home use ★★★☆☆ |
Travel & portability ★★★★☆ Fixed home use ★★★★★ |
Travel & portability ★★☆☆☆ Fixed home use ★★★★★ |
Crea tu comparación
Añade un modelo arriba o restaura toda la gama para ver las opciones una al lado de la otra.
Sigue las instrucciones de tu modelo. La colocación correcta del manguito y la posición del brazo o la muñeca importan al tomar una lectura.
Compara el formato, las opciones de alimentación y las especificaciones. Lee la concentración de oxígeno junto con su ajuste de flujo.
Desplázate horizontalmente para comparar todos los modelos
| Encuentra tu modeloModelos: 3 |
ZY-01Concentrador de oxígeno doméstico $399.99 Ver producto |
ZY-05Concentrador de oxígeno doméstico $578.00 Ver producto |
SJ-OX1CConcentrador de oxígeno portátil $999.00 Ver producto |
|---|---|---|---|
| Best ForDiferente | Home setup | Higher-flow home setup | Portable & in-car setup |
| Oxygen ConcentrationDiferente | ≥90% at 1 L/minAt the maximum recommended flow. | ≥90% at 1–5 L/minAt zero outlet back pressure, after startup. See conditions below. | 93% ±3% at 1 L/minConcentration decreases as flow increases. |
| Flow RangeDiferente | 1 L/minMaximum recommended flow, not the full adjustment range. | 1–5 L/minMaximum recommended flow: 5 L/min. | 1–6 L/minAdjustable continuous flow. This is not a high-concentration rating at 6 L/min. |
| WeightDiferente | Weight not yet verified for this versionConfirm the supplied version. | Weight not yet verified for this versionConfirm the supplied version. | Weight not yet verified for this versionConfirm the device and battery package. |
| Power / MobilityDiferente | Plug-in Home Use | Plug-in Home Use | AC, compatible car power or batteryConfirm the included adapters and battery package. |
| PortabilityDiferente | Tabletop format | Wheeled base | Shoulder-bag format |
| Typical UseDiferente | Home | Home | Home / Car |
| Why Choose ItDiferente | Compact home setup with a readable display. | Adjustable flow with a wheeled base. | Portable format with several power options. |
Crea tu comparación
Añade un modelo arriba o restaura toda la gama para ver las opciones una al lado de la otra.
Lee la concentración y el flujo juntos. Las cifras proceden de los manuales de cada modelo y dependen de las condiciones de funcionamiento. No son una recomendación para ajustar el oxígeno. Para la idoneidad médica, sigue las indicaciones de tu profesional sanitario. Un guion indica que la versión suministrada necesita confirmación; no equivale a cero y se excluye del resaltado de diferencias.
Condiciones de flujo y orientación por modelo
ZY-01: ≥90% applies at the maximum recommended flow of 1 L/min. Do not assume the same concentration at higher settings. The manual describes approximately 30 minutes of startup to reach maximum concentration.
ZY-05: The manual states ≥90% up to the maximum recommended flow of 5 L/min at zero outlet back pressure, reaching the specified concentration within 30 minutes of initial startup. Its ZY-05 graph covers 1–5 L/min. Altitude and operating conditions affect concentration.
SJ-OX1C: The manual specifies 93% ±3% at 1 ±0.2 L/min and 30% ±5% at 6 ±0.5 L/min. The adjustable flow range is not a guarantee of high concentration at every setting. Battery and car-power accessories depend on the package. Confirm compatibility before ordering; no single battery runtime is promised here.
These startup times describe equipment operation, not a treatment duration. Compare the figures with the manual and label supplied with your unit. Weight is not quoted while supplied-version details remain unconfirmed.
Manual en inglés de ZY-01 (PDF, se abre en una pestaña nueva) · Manual en inglés de ZY-05 (PDF, se abre en una pestaña nueva) · Confirmar el manual y el paquete de SJ-OX1C
¿Dudas sobre el dispositivo o el paquete? Contacta con nuestro soporte de productos.
Compara WH-02, WH-03 y YS-37 con las especificaciones actualizadas de Ziqing.
Desplázate horizontalmente para comparar los modelos seleccionados
| Encuentra tu modeloModelos: 3 |
 WH-02Nebulizador de compresor $69.99 Ver producto |
 WH-03Nebulizador de compresor Consultar sobre el modelo |
 YS-37Nebulizador de mano $29.98 Ver producto |
|---|---|---|---|
| Product PositioningDiferente | Home-use compressor nebulizer with accessory storage | Compact compressor nebulizer with timer/voice features | Lightweight handheld option designed for portability |
| Working PrincipleDiferente | Compressor-driven aerosolization | Compressor-driven aerosolization | Piezoelectric mesh vibration atomization |
| Nebulization RateDiferente | 0.32mL/min | 0.22mL/min | ≥ 0.20 mL/min |
| Particle SizeDiferente | MMAD 2.6 μm ±25% | Median diameter 3.7 μm ±25%; particles <5 μm ≥60% | Fog particle median diameter 5 μm ±25% |
| NoiseDiferente | ≤55 dB | ≤50 dB(A) | ≤38 dB(A) |
| Airflow OutputDiferente | 6 L/min | ≥4.5 L/min | Not applicable (mesh technology) |
| WeightDiferente | ≤1.5 kg | ≤0.3 kg | Not clearly specified in the supplied manual |
| DimensionsDiferente | Approx. 168 × 108 × 180 mm | 143 × 128 × 77.6 mm | 45 × 45 × 115 mm |
| Power / MobilityDiferente | AC powered (manual lists AC220V / AC110V versions) | AC100–240V, 50/60Hz | 2×AA batteries / optional 3.7V lithium battery / Type-C mobile charger |
| Continuous Working TimeDiferente | Not clearly specified | ≥60 minutes under suitable conditions | Approx. 20-minute cycle before automatic stop |
| Medication Capacity / ResidueDiferente | Liquid residue ≤1.2 mL | Liquid residue ≤1.2 mL | Recommended fill 0.5–8 mL |
| Ease of UseDiferente | Simple power-switch operation; built-in storage chamber | Simple operation with timing function and voice output | Handheld one-button operation; mask or mouthpiece use |
| PortabilityDiferente | ★★☆☆☆ | ★★★★☆ | ★★★★★ |
| PracticabilityDiferente | ★★★★★ | ★★★★☆ | ★★★★☆ |
| Typical Use ScenariosDiferente | Home / clinic / fixed-location use | Home / travel-friendly tabletop use | Travel / office / home / on-the-go use |
| Ideal UsersDiferente | Users who prefer a traditional compressor nebulizer for regular use | Users who want a lighter compressor model with timer features | Users who prioritize compact size, low noise and portability |
| Key AdvantagesDiferente | Stable compressor system / Accessory storage / Simple operation | Lightweight / Timer function / Voice output / Wide-range power supply | Compact / Quiet / Battery or Type-C power / No air tube required |
| Things to ConsiderDiferente | Replace the atomizing components | Replace the atomizing components | Mesh plate requires careful cleaning and maintenance |
| Best Choice ForDiferente | Best for Regular Home Use | Best for Compact Compressor Use | Best for Portability & Quiet Use |
| Website Short LabelDiferente | Reliable Home Nebulization | Compact & Feature-Rich | Portable & Quiet |
Crea tu comparación
Añade hasta tres modelos arriba o restaura la selección predeterminada.
Cómo leer esta comparación. Un guion indica que una especificación aún no se ha verificado para ese modelo, no que la función esté ausente. Los valores faltantes se excluyen del resaltado de diferencias. También se excluyen los datos incompletos de alimentación de WH-05 y YS-35. Consulta los detalles específicos del modelo con nuestro equipo antes de elegir. Contacta con nuestro soporte de productos
Condiciones de prueba de WH-02 y orientación por modelo
Source: Ziqing's updated product comparison. WH-02 nebulization rate (0.32 mL/min) and noise (≤55 dB) are customer-confirmed actual measurements. The original WH-02 manual lists approximately 0.16 mL/min and ≤65 dB; it has not been modified. Test conditions for the updated measurements were not provided, so the manual's test conditions are not attributed to these values.
Specifications and portability/practicability ratings are supplied by Ziqing, not an independent performance ranking. Confirm the exact version, power supply and accessories for your device. Unspecified values are not counted as verified differences.
Helpful answers
Questions, answered.
How should I read the flow and concentration figures?
The ZY-05 range shown here is 1-5 L/min, with a maximum recommended flow of 5 L/min. The manual lists at least 90% concentration under its specified conditions, including zero outlet back pressure and startup. Altitude and operating conditions affect output. Follow your healthcare professional's guidance for your settings, not a product photograph.
Why does the manual mention a startup period?
The manual describes approximately 30 minutes of initial startup to reach maximum oxygen concentration. This is an equipment operating note, not a recommended treatment duration. Read the complete startup instructions.
Is the remote control included?
The shared ZY-03 / ZY-05 manual lists the remote control as optional. Confirm it with your order. Its CR2025 battery powers the remote control, not the concentrator; the unit uses mains power.
How do I clean the concentrator and filters?
Disconnect power before cleaning and do not open or immerse the housing. Follow the instructions for each exact filter and accessory; do not assume all filter parts can be washed. Never operate with a missing or wet filter. See maintenance in the model manual.
What should I do if an alarm or unusual behavior appears?
Follow the safety instructions supplied with your unit and contact the supplier for assistance. If the problem remains, the manual directs you to stop using the unit, use your prescribed backup oxygen supply and contact the supplier immediately. Do not open the housing or attempt internal repairs. This website form is not an emergency service.
Can ZY-05 replace life-support or patient-monitoring equipment?
No. The manual states that the concentrator is not intended for life support or life sustaining, and does not provide patient monitoring. Discuss suitability and any backup requirements with your healthcare professional before use.
Which option should I select?
Match the available option to the version you need. For mains-powered devices, check the plug and voltage on the product label before use. Ask our team if you are unsure about compatibility.
