Nebulizers

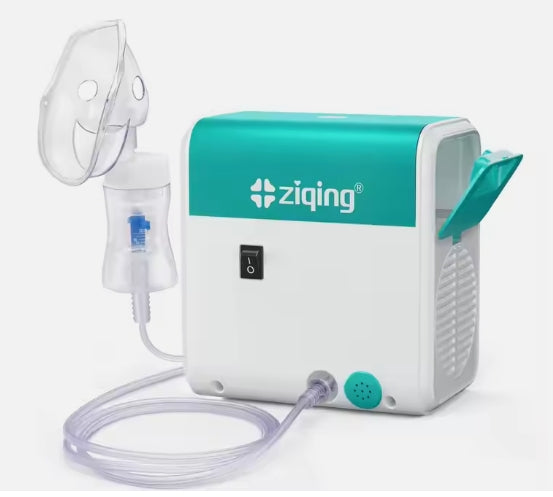

WH-02 Compressor Nebulizer
A tabletop compressor nebulizer with a built-in storage compartment and one-button controls.
USD · Taxes calculated at checkout. Shipping details
WH-02 · Everyday setup
Simple controls.
Everything in its place.
A tabletop compressor nebulizer with a simple power switch and an integrated accessory compartment. The open-and-close storage design keeps the setup together between uses.
Use only as directed by your healthcare professional and the WH-02 user manual. Clean and dry the appropriate parts before storage.
Simple on/off control
A single power switch for starting and stopping the compressor.
Built-in accessory storage
A dedicated compartment for keeping cleaned, dry accessories together.
Compact tabletop design
A compressor body measuring approximately 168 × 108 × 180 mm.
Getting started
Set up your WH-02.
Read the complete manual before use. These steps are a setup overview, not a substitute for its instructions or professional guidance.
Check and prepare
Inspect the parts and clean the kit as instructed. Keep the power switch off during setup.
Assemble the kit
Fit the internal funnel and inhalation top, then attach the mask or mouthpiece and air tube as shown in the manual.
Follow professional guidance
Use medication and a treatment regimen only as directed by your doctor or respiratory therapist. Keep the kit upright.
Switch off and disconnect
After use, turn the power off and unplug. Clean and dry the appropriate parts as instructed.
Before you switch on
A few important checks.
Check the device rating label and your power supply. The plug option alone does not establish the voltage rating.
Do not use the device while sleeping or drowsy. Supervise children during use. Do not immerse the compressor or air tube in water.
View the manual and videoCleaning and care
Different parts. Different care.
Switch off and unplug before cleaning. Follow the manual's instructions for each component.
Washable components
Wash the nebulizer kit, mask and mouthpiece in warm water with mild neutral detergent. Rinse and air-dry as directed in the manual.
Let cleaned parts dry before storing them in a clean place.
Keep out of water
Do not immerse the compressor or air tube. Unplug before wiping the compressor with a soft damp cloth.
Do not wash the air filter. Replace it if wet or dirty, and never use the device without the filter.
Do not boil the mask or air tube. For component-specific disinfection, condensation removal and filter replacement, follow the complete WH-02 user manual.
The details
In the box & specifications.
Dimensions shown are for the compressor only.
In the box
- Compressor main unit× 1
- Nebulizer kit× 1
- Air-filter cotton pieces× 2
- User manual× 1
The supplied plug depends on the option selected. Check your order details and device rating label.
| Model | WH-02 |
|---|---|
| Product type | Compressor nebulizer |
| Particle size | 2.6 μm MMAD ±25% |
| Nebulization rate | Approx. 0.16 mL/min (by weight loss) |
| Airflow output | 6 L/min |
| Liquid residue | ≤1.2 mL |
| Noise | ≤65 dB |
| Weight | ≤1.5 kg |
| Dimensions | Approx. 168 (L) × 108 (W) × 180 (H) mm (compressor only) |
| Input power | 120 VA |
| Power supply | Use only at the voltage marked on the supplied device. |
| IP rating | IPX0 |
MMAD means Mass Median Aerodynamic Diameter. Approximate values and test conditions are specified in the WH-02 manual.
Operating conditions and specification notes
Operating environment: +10°C to +40°C; 30% to 75% RH; atmospheric pressure 86 to 106 kPa.
Manual reference conditions: 20°C, 53% RH, 10 cm from the nebulizer nozzle, using 5 mL of 0.9% physiological saline. Performance varies with conditions and the solution used. The 5 mL figure is a test volume, not a recommended dose or cup capacity.
Power rating: The manual lists separate AC110V and AC220V ratings. This is not a universal-voltage specification. Check the rating on your device before connecting it to power.
Electrical classification: Class II equipment; Type B applied part. These are electrical classifications, not a medical-device risk class or certification claim.
Normal nebulizer output pressure: 60 to 120 kPa.
Read all technical data and safety information in the WH-02 English manual.
Model-specific guidance
Your WH-02, explained.
The English manual covers setup, cleaning, troubleshooting and technical information. Keep it available and read all safety instructions before use.
Open English manual · PDFWH-02 · English · 15 pages · Opens in a new tab
Official tutorial · Ziqing Medical
WH-02 video guide
Watch the model-specific setup guide alongside your user manual.
Find your fit
Explore the range.
Scroll across to compare all models
| Find your fitModels: 3 |
XW-06Wrist Blood Pressure Monitor View product |
XB-01Upper-Arm Blood Pressure Monitor View product |
DP-02Arm-Cylinder Blood Pressure Monitor View product |
|---|---|---|---|
| Product PositioningDifferent | Compact and portable for convenient measurement anytime | A balanced choice for everyday home monitoring | A simpler, user-friendly solution for routine home measurement |
| Measurement SiteDifferent | Wrist | Upper arm | Upper arm |
| How It WorksDifferent | An inflatable wrist cuff applies pressure to the wrist artery. Oscillometric technology detects pulse oscillations to calculate systolic pressure, diastolic pressure, and pulse rate. | An inflatable cuff wraps around the upper arm. Oscillometric technology detects pressure oscillations to calculate systolic pressure, diastolic pressure, and pulse rate. | Place the upper arm into the integrated arm cylinder. The device automatically inflates and uses oscillometric technology to measure blood pressure and pulse rate. |
| How to Wear / UseDifferent | Wrap the integrated cuff directly around the wrist | Wrap the separate cuff correctly around the upper arm | Place the arm directly into the integrated arm cylinder; no separate cuff wrapping required |
| Ease of UseDifferent | Easy, but wrist positioning is more sensitive during measurement | Straightforward; correct cuff placement is required | Very intuitive, with fewer cuff-wrapping steps |
| Measurement PostureDifferent | Keep the wrist at heart level; remain still and do not talk | Sit steadily with the upper arm relaxed and supported at heart level | Sit steadily, place the arm naturally into the arm cylinder, keep it supported and remain still |
| PortabilityDifferent | ★★★★★ Excellent | ★★★★☆ Very Good | ★★☆☆☆ Best for a fixed home location |
| Storage ConvenienceDifferent | Compact size, convenient for carrying | Main unit + cuff; suitable for home storage or travel | Integrated design with a larger footprint; ideal for long-term tabletop placement |
| Typical Use ScenariosDifferent | Travel, business trips, office use, quick measurements | Everyday home use, regular blood pressure tracking, family health monitoring | Fixed home monitoring, routine use by older adults, frequent use by multiple family members |
| Ideal UsersDifferent | Users who prioritize portability, travel frequently, or want quick and convenient measurements | Most home users and those who prefer a standard upper-arm measurement method | Older adults, users with limited hand dexterity, and those who prefer fewer cuff-placement steps |
| Key AdvantagesDifferent | Compact & portable / One-touch measurement / Large display | Upper-arm measurement / Adjustable cuff / Flexible home use | Integrated arm cylinder / Fewer setup steps / Large easy-to-read display / Tabletop design |
| Things to ConsiderDifferent | Wrist position can significantly affect readings. Follow the instructions carefully and keep the wrist at heart level. | Correct cuff size and placement are important. A cuff that is too loose, too tight, or incorrectly sized may affect measurements. | Requires more space than compact monitors; correct sitting posture and arm position should still be maintained according to the instructions. |
| Best Choice ForDifferent | Best for Portability | Best for Everyday Home Monitoring | Best for Easy Home Use |
| Website Short LabelDifferent | Portable & Compact | Reliable Everyday Monitoring | Easy Arm-In Measurement |
| Recommended by ScenarioDifferent | Travel & portability ★★★★★ Fixed home use ★★★☆☆ |
Travel & portability ★★★★☆ Fixed home use ★★★★★ |
Travel & portability ★★☆☆☆ Fixed home use ★★★★★ |
Build your comparison
Add a model above, or restore the full lineup to see your options side by side.
Follow the instructions for your model. Correct cuff placement and arm or wrist position matter when taking a reading.
Compare the format, power options and model specifications. Read oxygen concentration together with its flow setting.
Scroll across to compare all models
| Find your fitModels: 3 |
ZY-01Home Oxygen Concentrator $399.99 View product |
ZY-05Home Oxygen Concentrator $578.00 View product |
SJ-OX1CPortable Oxygen Concentrator $999.00 View product |
|---|---|---|---|
| Best ForDifferent | Home setup | Higher-flow home setup | Portable & in-car setup |
| Oxygen ConcentrationDifferent | ≥90% at 1 L/minAt the maximum recommended flow. | ≥90% at 1–5 L/minAt zero outlet back pressure, after startup. See conditions below. | 93% ±3% at 1 L/minConcentration decreases as flow increases. |
| Flow RangeDifferent | 1 L/minMaximum recommended flow, not the full adjustment range. | 1–5 L/minMaximum recommended flow: 5 L/min. | 1–6 L/minAdjustable continuous flow. This is not a high-concentration rating at 6 L/min. |
| WeightDifferent | Weight not yet verified for this versionConfirm the supplied version. | Weight not yet verified for this versionConfirm the supplied version. | Weight not yet verified for this versionConfirm the device and battery package. |
| Power / MobilityDifferent | Plug-in Home Use | Plug-in Home Use | AC, compatible car power or batteryConfirm the included adapters and battery package. |
| PortabilityDifferent | Tabletop format | Wheeled base | Shoulder-bag format |
| Typical UseDifferent | Home | Home | Home / Car |
| Why Choose ItDifferent | Compact home setup with a readable display. | Adjustable flow with a wheeled base. | Portable format with several power options. |
Build your comparison
Add a model above, or restore the full lineup to see your options side by side.
Read concentration and flow together. Figures above are from the model manuals and depend on operating conditions. They are not a recommendation for your oxygen settings. For medical suitability, follow your healthcare professional's guidance. A dash means the supplied version needs confirmation; it is not zero and is excluded from difference highlighting.
Flow conditions & model guidance
ZY-01: ≥90% applies at the maximum recommended flow of 1 L/min. Do not assume the same concentration at higher settings. The manual describes approximately 30 minutes of startup to reach maximum concentration.
ZY-05: The manual states ≥90% up to the maximum recommended flow of 5 L/min at zero outlet back pressure, reaching the specified concentration within 30 minutes of initial startup. Its ZY-05 graph covers 1–5 L/min. Altitude and operating conditions affect concentration.
SJ-OX1C: The manual specifies 93% ±3% at 1 ±0.2 L/min and 30% ±5% at 6 ±0.5 L/min. The adjustable flow range is not a guarantee of high concentration at every setting. Battery and car-power accessories depend on the package. Confirm compatibility before ordering; no single battery runtime is promised here.
These startup times describe equipment operation, not a treatment duration. Compare the figures with the manual and label supplied with your unit. Weight is not quoted while supplied-version details remain unconfirmed.
ZY-01 English manual (PDF, opens in a new tab) · ZY-05 English manual (PDF, opens in a new tab) · Confirm the SJ-OX1C manual and package
Questions about the device or package? Contact our product support team.
Compare WH-02, WH-03 and YS-37 using the updated Ziqing product specifications.
Scroll across to compare all selected models
| Find your fitModels: 3 |
 WH-02Compressor Nebulizer $69.99 View product |
 WH-03Compressor Nebulizer Ask about model |
 YS-37Handheld Nebulizer $29.98 View product |
|---|---|---|---|
| Product PositioningDifferent | Home-use compressor nebulizer with accessory storage | Compact compressor nebulizer with timer/voice features | Lightweight handheld option designed for portability |
| Working PrincipleDifferent | Compressor-driven aerosolization | Compressor-driven aerosolization | Piezoelectric mesh vibration atomization |
| Nebulization RateDifferent | 0.32mL/min | 0.22mL/min | ≥ 0.20 mL/min |
| Particle SizeDifferent | MMAD 2.6 μm ±25% | Median diameter 3.7 μm ±25%; particles <5 μm ≥60% | Fog particle median diameter 5 μm ±25% |
| NoiseDifferent | ≤55 dB | ≤50 dB(A) | ≤38 dB(A) |
| Airflow OutputDifferent | 6 L/min | ≥4.5 L/min | Not applicable (mesh technology) |
| WeightDifferent | ≤1.5 kg | ≤0.3 kg | Not clearly specified in the supplied manual |
| DimensionsDifferent | Approx. 168 × 108 × 180 mm | 143 × 128 × 77.6 mm | 45 × 45 × 115 mm |
| Power / MobilityDifferent | AC powered (manual lists AC220V / AC110V versions) | AC100–240V, 50/60Hz | 2×AA batteries / optional 3.7V lithium battery / Type-C mobile charger |
| Continuous Working TimeDifferent | Not clearly specified | ≥60 minutes under suitable conditions | Approx. 20-minute cycle before automatic stop |
| Medication Capacity / ResidueDifferent | Liquid residue ≤1.2 mL | Liquid residue ≤1.2 mL | Recommended fill 0.5–8 mL |
| Ease of UseDifferent | Simple power-switch operation; built-in storage chamber | Simple operation with timing function and voice output | Handheld one-button operation; mask or mouthpiece use |
| PortabilityDifferent | ★★☆☆☆ | ★★★★☆ | ★★★★★ |
| PracticabilityDifferent | ★★★★★ | ★★★★☆ | ★★★★☆ |
| Typical Use ScenariosDifferent | Home / clinic / fixed-location use | Home / travel-friendly tabletop use | Travel / office / home / on-the-go use |
| Ideal UsersDifferent | Users who prefer a traditional compressor nebulizer for regular use | Users who want a lighter compressor model with timer features | Users who prioritize compact size, low noise and portability |
| Key AdvantagesDifferent | Stable compressor system / Accessory storage / Simple operation | Lightweight / Timer function / Voice output / Wide-range power supply | Compact / Quiet / Battery or Type-C power / No air tube required |
| Things to ConsiderDifferent | Replace the atomizing components | Replace the atomizing components | Mesh plate requires careful cleaning and maintenance |
| Best Choice ForDifferent | Best for Regular Home Use | Best for Compact Compressor Use | Best for Portability & Quiet Use |
| Website Short LabelDifferent | Reliable Home Nebulization | Compact & Feature-Rich | Portable & Quiet |
Build your comparison
Add up to three models above, or restore the default selection.
Reading this comparison. A dash means a specification has not yet been verified for that model, not that the feature is absent. Missing values are excluded from difference highlighting. The incomplete WH-05 and YS-35 power entries are also excluded. Ask our team for model-specific details before choosing. Contact our product support team
WH-02 test conditions & model guidance
Source: Ziqing's updated product comparison. WH-02 nebulization rate (0.32 mL/min) and noise (≤55 dB) are customer-confirmed actual measurements. The original WH-02 manual lists approximately 0.16 mL/min and ≤65 dB; it has not been modified. Test conditions for the updated measurements were not provided, so the manual's test conditions are not attributed to these values.
Specifications and portability/practicability ratings are supplied by Ziqing, not an independent performance ranking. Confirm the exact version, power supply and accessories for your device. Unspecified values are not counted as verified differences.
Helpful answers
Questions, answered.
Does WH-02 have built-in storage?
Yes. The integrated compartment helps keep the nebulizer accessories together. Clean and dry the appropriate parts before putting them away.
Can I wash the whole device?
No. The nebulizer kit, mask and mouthpiece have specific cleaning instructions. Do not immerse the compressor or air tube, and do not wash the air filter. Follow the WH-02 user manual for each part.
Can the device be used during sleep?
No. Do not use WH-02 while sleeping or drowsy. Children require supervision during use.
Which medication or treatment time should I use?
Follow the instructions from your doctor or respiratory therapist. This page does not prescribe medication, dosage or treatment duration.
What should I check if there is little or no mist?
With the device switched off, refer to the WH-02 troubleshooting guide for correct assembly, tubing connections, blockages and the air filter. If the problem continues, contact support; do not attempt internal repairs.
Where can I find the WH-02 instructions?
Open the WH-02 English manual or find the official Ziqing Medical video in the manual and tutorial section on this page.
Which option should I select?
Match the available option to the version you need. For mains-powered devices, check the plug and voltage on the product label before use. Ask our team if you are unsure about compatibility.
Where can I find shipping and return information?
Read our shipping policy and refund policy for the store's current terms.
